- Most versatile.
- Equipped with co-axial focusing system based on four stage gear reduction.
- Travelling on ball bearing guides.

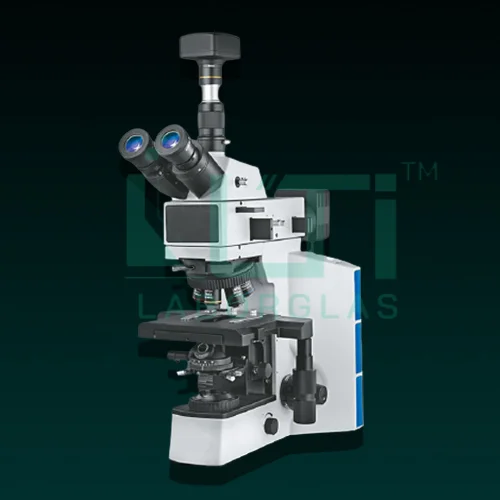

- Co-axial mechanical stage & trinocular observation head for Micro-Photography & C.C.T.V Facility.
Technical Specification:
Magnification : 25X & 1000X
Eye Piece : Paired 5X Huygenian & wide Field 10X/Ø18mm
Achromatic Objectives : 5X & 10X & 40X(SL) & 100X(SL) Oil Immersion (All Parafocal)
Nose Piece : Quadruple revolves on ball bearing.
Mechanical Stage : Better quality mechanical stage having low positioned co-axial control on
ball bearing
Head : Trinocular head ,Bonocular inclined at 30 and rotatable at 360. Diopter
power adjustment ring on accular tube.
Interpopillary Distance : Adujustable from 55-75mm.
Focusing : Coaxial focusing system,pre-focusing lever and tension adjutment ring with
locking system.
Illumination : Built in base illumination system with 6v-20w halogen lamp.
