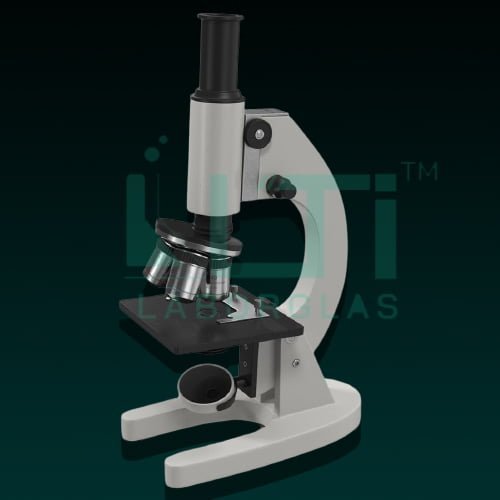

- This microscope is suitable for observation of cells and micro organisms
- It has a u-shaped heavy cast iron base with 90 inclinable body
- Packed in shock proof thermocouple box and outer thick wooden box with instruction manual and vinyl cover.
Technical Specification:
Magnification : 50X & 1000X
Eye Piece : Huygenian 5X & 10X
Achromatic Objectives : 10X & 40X & 100X (SL, Par-Focal)
Nose Piece : Revolving Triple Nose piece carries the objectives.
Focusing System : Separate knobs for coarse and fine motion are provided on the body & the slow motion is drum type
Mechanical Stage : 110x110mm with stage clips, A detachable mechanical stage can be fitted on
the stage allowing XY movement of the side to observe specific portion of slide
Illumination : Illumination is by plano cocave reflector, through a knob provided on the lower left side of the body
