Product Details:
Material Stainless Steel
Installation Service Yes
Type Table Top Model
Features:
- Tank is double walls inner and outer made of SS 304 quality
- High quality glass wool insulation filled between the walls
- Condenser made of SS 304
- High quality kettle elements of refractory type elements
- Wide range of capacity/accurate output

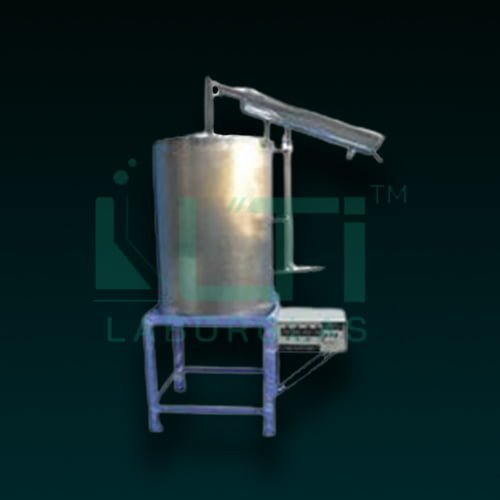

The abbreviation for “Water Still Barnstead Pattern” could be “WSBP” or “Barnstead WS.” This refers to a specific type or pattern of water still, which is a device used for producing distilled water in laboratory settings. The “Barnstead Pattern” indicates a design or model associated with the Barnstead brand, known for manufacturing laboratory equipment, including water stills.
Technical Specifications:
| Part No. | Capacity Output Per Hour | Rating | Volts |
| 8110-4 | 4 lt. capacity | 3.0 kw | 230 volts |
| 8110-10 | 10 lt.capacity | 6.0 kw | 440 volts |
| 8110-15 | 15lt. capacity | 10.0 kw | 440 volts |
| 8110-20 | 20 lt. capacity | 14.0 kw | 440 volts |
| 8110-25 | 25 lt. capacity | 18.0 kw | 440 volts |
| 8110-40 | 40 lt. capacity | 24.0 kw | 440 volts |
