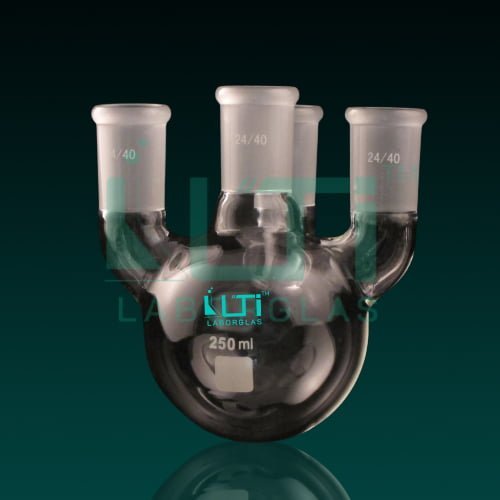

5680-Flasks, Round Bottom, Four Necks Parallel, DIN & USP

  • Complies with DIN 12392 & USP standard
  • Centre Neck and Three Parallel Side Neck
  • With Interchangeable Joints
  • Made From Heat Resistant, Low Expansion 3.3 Borosilicate Glass.
  • Complies with DIN 12392 & USP standard
  • Centre Neck and Three Parallel Side Neck
  • With Interchangeable Joints
  • Made From Heat Resistant, Low Expansion 3.3 Borosilicate Glass.
PART  No. Capacity (ml) Centre Size Side Socket PACK Qty.
5680-50 50 24/29 24/29 1
5680-100 100 24/29 14/23 1
5680-100-A 100 24/29 19/26 1
5680-250 250 24/29 19/26 1
5680-250-A 250 19/26 19/26 1
5680-250-B 250 24/29 14/23 1
5680-250-C 250 29/32 14/23 1
5680-250-D 250 29/32 29/32 1
5680-500 500 24/29 19/26 1
5680-500-A 500 19/26 19/26 1
5680-500-B 500 24/29 24/29 1
5680-500-C 500 24/29 14/23 1
5680-500-D 500 29/32 14/23 1
5680-500-E 500 29/32 19/26 1
5680-500-F 500 29/32 29/32 1
5680-500-G 500 34/35 24/29 1
5680-1000 1000 24/29 19/26 1
5680-1000-A 1000 24/29 14/23 1
5680-1000-B 1000 24/29 24/29 1
5680-1000-C 1000 29/32 14/23 1
5680-1000-D 1000 29/32 19/26 1
5680-1000-E 1000 29/32 24/29 1
5680-1000-F 1000 29/32 29/32 1
5680-1000-G 1000 34/35 24/29 1
5680-1000-H 1000 45/40 29/32 1
5680-2000 2000 24/29 19/26 1
5680-2000-A 2000 24/29 14/23 1
5680-2000-B 2000 29/32 19/26 1
5680-2000-C 2000 29/32 29/32 1
5680-2000-D 2000 34/35 19/26 1
5680-2000-E 2000 34/35 24/29 1
5680-2000-F 2000 45/40 29/32 1
5680-3000 3000 29/32 29/32 1
5680-3000-A 3000 34/35 19/26 1
5680-3000-B 3000 34/35 24/29 1
5680-3000-C 3000 45/40 29/32 1
5680-5000-A 5000 34/35 19/26 1
5680-5000-B 5000 34/35 24/29 1
5680-10000 10000 34/35 24/29 1
5680-10000-A 10000 55/44 24/29 1
5680-10000-B 10000 45/40 24/29 1
5680-20000 20000 55/44 24/29 1

Here are some potential uses for such a flask:

  1. Parallel Reactions: The multiple necks allow for the simultaneous setup of four different reactions, enabling researchers to conduct parallel experiments.
  2. Distillation and Fractionation: The flask can be used for parallel distillation setups, where different components of multiple samples can be collected through the individual necks.
  3. Refluxing: Each neck can be used for reflux setups, allowing for the refluxing of multiple reactions simultaneously.
  4. Simultaneous Sampling and Analysis: Researchers can use the individual necks for simultaneous sampling or the addition of reagents, facilitating real-time analysis or monitoring of reactions.
  5. Temperature Control Experiments: One or more necks can be utilized for inserting thermometers or temperature probes, allowing for precise temperature control in each reaction.
  6. Gas Inlet/Outlet: One or more necks can be used as gas inlets or outlets, making the flask suitable for reactions involving gaseous reactants or by-products.
  7. Complex Reaction Setups: The multiple necks offer flexibility for designing complex experimental setups that involve multiple reactants, catalysts, or monitoring devices.
  8. Multi-step Synthesis: The flask can be used for multi-step synthesis, where different steps of a synthesis process can be conducted concurrently in separate compartments.
  9. Biological and Pharmaceutical Applications: In laboratories focused on biological or pharmaceutical research, these flasks may be used for parallel screening of reactions or for multiple reactions involved in the synthesis of pharmaceutical compounds.
