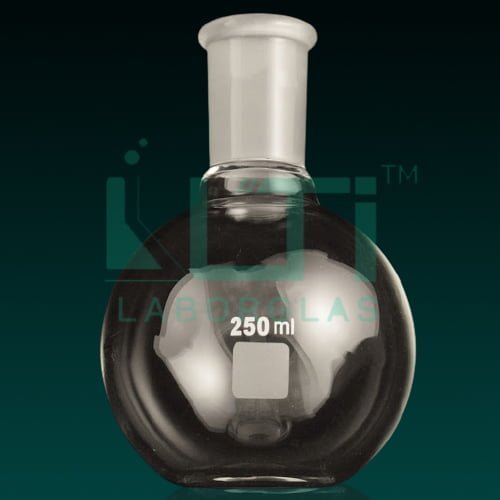

5520-Flat Bottom Flask with Joint, ASTM

  • These Flasks comes with Ground Joint manufactured
  • ASTM E-1403 type 1 specifications
  • The Flasks are printed in white colour enamel
  • These Flasks comes with Ground Joint manufactured
  • ASTM E-1403 type 1 specifications
  • The Flasks are printed in white colour enamel
PART  No.Capacity (ml)Socket Size Overall Height (mm)Overall Dia (mm)PACK Qty.
5520-505024/4095512
5520-10010024/40110642
5520-20020024/40123752
5520-25025024/40130852
5520-30030024/40140882
5520-50050024/401601052
5520-1000100029/421781311
5520-1000-A100024/402051661
5520-2000200024/401781311

Here are some general applications and uses for flat-bottom flasks with joints in accordance with ASTM standards:

  1. Chemical Synthesis: Flat-bottom flasks with joints are often used in chemical synthesis reactions. The joints allow for the attachment of other glassware, such as condensers, reflux systems, or addition funnels.
  2. Distillation: Distillation processes, which involve separating components of a liquid mixture based on differences in their volatilities, often use flat-bottom flasks with joints. The joints enable the connection of distillation columns, condensers, and receiving flasks.
  3. Sample Preparation: In analytical chemistry, flat-bottom flasks with joints can be used for sample preparation before analysis. This may involve processes like evaporation or concentration of solutions.
  4. Extraction: When performing extractions, where components are selectively removed from a sample, flat-bottom flasks with joints can be used with separatory funnels or extraction apparatus.
  5. ASTM Methods: Various ASTM methods may specify the use of flat-bottom flasks with joints for specific tests or analyses. For example, methods related to distillation, reflux, or specific sample preparation techniques may prescribe the use of such flasks.
