- This mechanism is used for slab gel electrophoresis, Thin layer Chromatography, Forensic examination & D.N.A. Analysis/ Experimentation.
- Transilluminator provide ultraviolet illumination from beneath the sample.
- they can be used in conjunction with a U.V. viewing cabinet to give greater of intensity of illumination.
The product comes in three different ranges:
- TRANSILLUMINATORS 360nm External case is made of thick steel & covered with a thick layer of epoxy based polyester paint, which provide a strong, hoghly scratch & chemical resistant surface. This mechanism has a window covered with fixed U.V. transparent sheet, six 360nm. U.V. source are fixed beneath the window. An exhaust fan is fixed for cooling. the hinged eye protective U.V. obstruction cover provided with this mechanism is meant for covering the entire window. (window Size 10 X 10cm)
- TRANSILLUMINATORS 312nm External case is made of thick steel & covered with a thick layer of epoxy based polyester paint, which provide a strong, hoghly scratch & chemical resistant surface. This mechanism has a window covered with fixed U.V. transparent sheet, six 360nm. U.V. source are fixed beneath the window. An exhaust fan is fixed for cooling. the hinged eye protective U.V. obstruction cover provided with this mechanism is meant for covering the entire window. (window Size 10 X 10cm.)

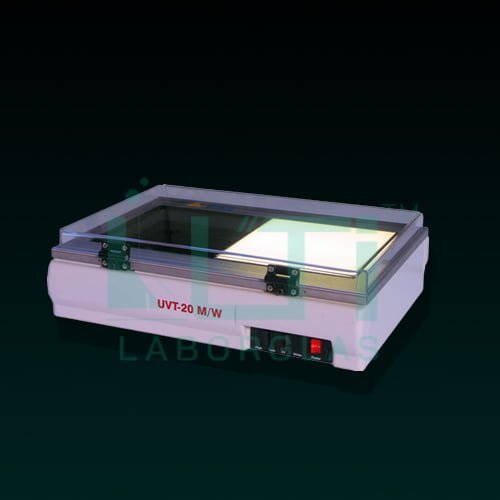

- WHITE/ ULTRA VOILET TRANSILLUMINATOR (DUAL MODEL) This is a conjuct mechanism of ultra violet & white light sources.Ultra violet section can be used to examine slab gel electrophoressis, thin Layer Chromatography, D.N.A & Nucleic Acids.White light section can be used for viewing coomassie blue stained gets, silver stained proteins gets, autoradiographs & Microtiter plates. (SHOWN IN PICTURE PLACED)
- Construction: External case is made of thick steel & covered with a thick layer of epoxy based polyester paint which provides a strong, highly scratch & chemical resistant surface. This mechanism has two window, one covered with U.V. transparent sheet & the other is covered withwhite translucent sheet, six 360nm U.V. sources & four white light sourcess are fixed beneath the window. An exhaust fan is fixed for cooling, the hinged eye pritective U.V. obstruction cover is provided for U.V. soucde. it covers both the window.
Part No. | Description |
12890 |
TRANSILLUMINATORS |
Its uses can be summarized as follows:
Gel Electrophoresis Visualization:
- Illuminates and visualizes nucleic acid or protein bands in gel electrophoresis.
Fluorescent Sample Inspection:
- Facilitates the examination of samples containing fluorescent markers or dyes.
DNA and Protein Analysis:
- Supports the analysis of DNA fragments or proteins separated in gels during molecular biology research.
Forensic and Molecular Biology:
- Commonly used in forensic science and molecular biology laboratories for analyzing genetic material.
Document Examination:
- Used for document examination, such as verifying the authenticity of fluorescent markers.
Transparency Inspection:
- Enables the inspection of transparency in materials by passing light through them.
Darkroom Imaging:
- Part of darkroom setups for imaging and documentation purposes in molecular biology applications.
UV Light Source:
- Typically equipped with UV lights for excitation of fluorescence in samples.
Research and Diagnostic Applications:
- Widely employed in scientific research and diagnostic settings for various applications requiring fluorescence visualization.
Quality Control:
- Supports quality control processes by aiding in the accurate assessment of samples with fluorescent properties.
