- Compliance with DIN 12576
- Drip Tip
- Inter changeable Inner & Outer Joints
- Made from Heat Resistant, Low Expansion 3.3 Borosilicate Glass
PART No. | Effective Length (mm.) | Female Joint | Male Joint | PACK Qty. |
6070-160 | 160 | 14/23 | 14/23 | 1 |
6070-160-A | 160 | 19/26 | 19/26 | 1 |
6070-250 | 250 | 19/26 | 19/26 | 1 |
6070-250-A | 250 | 24/29 | 24/29 | 1 |
6070-250-B | 250 | 29/32 | 29/32 | 1 |
6070-300 | 300 | 19/26 | 19/26 | 1 |
6070-300-A | 300 | 24/29 | 24/29 | 1 |
6070-300-B | 300 | 29/32 | 29/32 | 1 |
6070-400 | 400 | 24/29 | 24/29 | 1 |
6070-400-A | 400 | 29/32 | 29/32 | 1 |

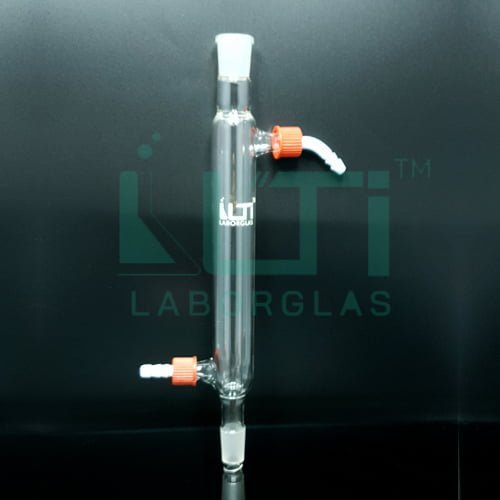

The abbreviation for “Condenser, Leibig with Screw Thread Connector, DIN” could be “Leibig Cond., Screw Thread, DIN” or “LC-ST-DIN.” This denotes a Leibig condenser with a screw thread connector according to DIN (Deutsches Institut für Normung, the German Institute for Standardization) standards. Leibig condensers are commonly used in laboratory setups for various cooling and condensation purposes, and the screw thread connector facilitates secure connections in a laboratory apparatus.
