- With Double Metric Scale, TC (To Contain)
- Cylinders are made to meet ASTM E 1272 norms
- Printed in amber enamel
| PART No. | Capacity (ml) | SUB DIVISION (ml)
|
±Tol.(ml)
|
Pack QTY |
| 3650-5 | 5 | 0.1 | 0.1 | 2 |
| 3650-10 | 10 | 0.1 | 0.2 | 2 |
| 3650-25 | 25 | 0.2 | 0.34 | 2 |
| 3650-50 | 50 | 1 | 0.5 | 2 |
| 3650-100 | 100 | 1 | 1.0 | 2 |
| 3650-250 | 250 | 2 | 2.0 | 2 |
| 3650-500 | 500 | 5 | 4.0 | 2 |
| 3650-1000 | 1000 | 10 | 6.0 | 2 |
| 3650-2000 | 2000 | 20 | 12.0 | 2 |

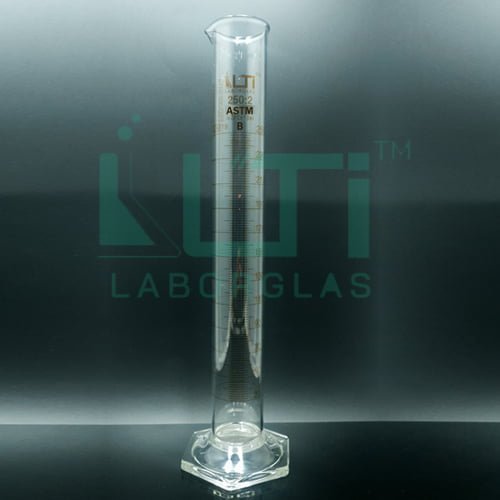

Here are some common uses for a Class B graduated measuring cylinder with a hex base:
- General Volume Measurements: Class B measuring cylinders are suitable for general laboratory purposes where a high degree of accuracy is not critical. They are commonly used for routine measurements and less precise applications.
- Educational Settings: Class B measuring cylinders are often used in educational laboratories, where the emphasis is on teaching basic measurement skills rather than demanding high precision.
- Bulk Solution Preparation: If the experiment or procedure allows for a margin of error in volume measurements, a Class B measuring cylinder can be used for bulk preparation of solutions.
- Qualitative Analysis: In situations where the exact volume is not crucial, such as qualitative analysis or initial screenings, a Class B measuring cylinder may be sufficient.
- Hex Base Stability: The hexagonal base provides stability, reducing the risk of the measuring cylinder tipping over during routine, less critical tasks.
- Transparent Observations: Similar to Class A cylinders, the clear glass construction allows for easy visual observation of the liquid inside, making it suitable for various applications where clarity is important.
- Cost-Effective Solutions: Class B measuring cylinders are generally more cost-effective than Class A instruments. Therefore, they are chosen for applications where the higher accuracy of Class A is not required, and budget considerations are a factor.
- Unserialized Identification: Like Class A, some Class B measuring cylinders may be unserialized, providing a practical and economical solution for laboratories where traceability is not a primary concern.
