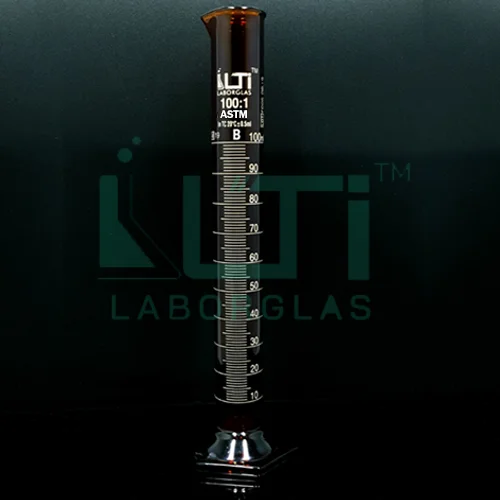

- With Double Metric Scale, TC (To Contain)
- Cylinders are made to meet ASTM E 1272 norms
- Printed in white enamel
| PART No. | Capacity (ml) | SUB DIVISION (ml)
| ±Tol.(ml)
| Pack QTY |
| 3620-5 | 5 | 0.1 | 0.1 | 1 |
| 3620-10 | 10 | 0.1 | 0.2 | 1 |
| 3620-25 | 25 | 0.2 | 0.34 | 1 |
| 3620-50 | 50 | 1 | 0.5 | 1 |
| 3620-100 | 100 | 1 | 1.0 | 1 |
| 3620-250 | 250 | 2 | 2.0 | 1 |
| 3620-500 | 500 | 5 | 4.0 | 1 |
| 3620-1000 | 1000 | 10 | 6.0 | 2 |
| 3620-2000 | 2000 | 20 | 12.0 | 2 |
Potential uses for such a measuring cylinder:
- Solution Preparation: Measuring cylinders, especially those with Class B accuracy, are commonly used in laboratories for the preparation of solutions. The graduations on the cylinder allow for reasonably accurate measurements of liquid volumes.
- Volumetric Analysis: Class B graduated cylinders are designed with a tolerance that allows for accurate measurements, making them suitable for general volumetric analysis where high precision is not critical.
- Educational Purposes: Amber glass measuring cylinders with hex bases may be used in educational settings to teach students about volumetric measurements. The hex base provides stability, and the amber glass introduces the concept of protecting substances from light.
- Quality Control: In industries such as pharmaceuticals, food, or beverages, where precise volume measurements are essential but the highest level of accuracy is not always required, Class B measuring cylinders may be used for quality control purposes.
- Research and Development: In laboratory research settings, where a balance between precision and cost-effectiveness is required, Class B measuring cylinders can be employed for various tasks, such as preparing solutions or conducting experiments.
- General Laboratory Measurements: The hex base ensures stability during measurements, making the measuring cylinder suitable for general laboratory applications where stability is crucial.
- Sample Storage: Measuring cylinders can be used for storing liquid samples, and the amber glass provides protection against light, which is important for maintaining the stability of light-sensitive samples.
- Environmental Analysis: In environmental testing labs, where sample volumes need to be measured with reasonable accuracy, amber glass measuring cylinders may be used for tasks such as water sample analysis.
- Chemical Processing: In chemical manufacturing or processing, where precise measurements are necessary but the highest level of accuracy is not always required, Class B measuring cylinders can be employed.
- Distillation Procedures: Amber glass measuring cylinders can be used in distillation processes where accurate measurement of liquid volumes is crucial.
- Dilution Processes: When diluting solutions to specific concentrations, Class B measuring cylinders can be employed to ensure reasonably accurate volume measurements.
