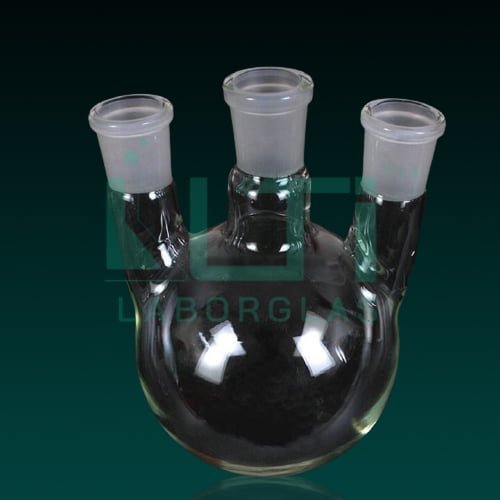

- Made from ASTM E-438 Type 1, Boro 3.3 heat resistance glass
- Available Three Neck Parallel
- Complies with DIN 12392 & USP standard
| PART No. |
Capacity (ml) |
Centre Size |
Side Socket |
Overall Height |
PACK Qty. |
| 5660-100 |
100 |
19/26 |
14/23 |
105 |
1 |
| 5660-100-A |
100 |
14/23 |
14/23 |
105 |
1 |
| 5660-100-B |
100 |
24/29 |
14/23 |
105 |
1 |
| 5660-100-C |
100 |
24/29 |
19/26 |
105 |
1 |
| 5660-250 |
250 |
24/29 |
19/26 |
140 |
1 |
| 5660-250-A |
250 |
19/26 |
19/26 |
140 |
1 |
| 5660-250-B |
250 |
29/32 |
14/23 |
140 |
1 |
| 5660-250-C |
250 |
29/32 |
29/32 |
140 |
1 |
| 5660-500 |
500 |
24/29 |
19/26 |
163 |
1 |
| 5660-500-A |
500 |
19/26 |
19/26 |
163 |
1 |
| 5660-500-B |
500 |
29/32 |
14/23 |
163 |
1 |
| 5660-500-C |
500 |
29/32 |
19/26 |
163 |
1 |
| 5660-500-D |
500 |
29/32 |
29/32 |
163 |
1 |
| 5660-1000 |
1000 |
24/29 |
19/26 |
200 |
1 |
| 5660-1000-A |
1000 |
29/32 |
14/23 |
200 |
1 |
| 5660-1000-B |
1000 |
29/32 |
19/26 |
200 |
1 |
| 5660-1000-C |
1000 |
29/32 |
24/29 |
200 |
1 |
| 5660-1000-D |
1000 |
29/32 |
29/32 |
200 |
1 |
| 5660-2000 |
2000 |
24/29 |
19/26 |
240 |
1 |
| 5660-2000-A |
2000 |
29/32 |
19/26 |
240 |
1 |
| 5660-2000-B |
2000 |
29/32 |
29/32 |
240 |
1 |
| 5660-2000-C |
2000 |
34/35 |
19/26 |
240 |
1 |
| 5660-2000-D |
2000 |
34/35 |
24/29 |
240 |
1 |
| 5660-3000 |
3000 |
34/35 |
24/29 |
260 |
1 |
| 5660-3000-A |
3000 |
34/35 |
19/26 |
260 |
1 |
| 5660-5000 |
5000 |
34/35 |
19/26 |
305 |
1 |
| 5660-5000-A |
5000 |
34/35 |
24/29 |
305 |
1 |
| 5660-10000 |
10000 |
34/35 |
24/29 |
380 |
1 |
| 5660-10000-A |
10000 |
45/40 |
24/29 |
380 |
1 |
| 5660-20000 |
20000 |
55/44 |
24/29 |
435 |
1 |
Here are some common uses for a 3-Neck Parallel Round Bottom Flask:
- Parallel Reactions: The primary use is for conducting multiple reactions simultaneously, with each neck facilitating a separate reaction vessel.
- Distillation and Fractionation: The flask can be used for distillation setups where different components of a mixture are collected through the three necks. Fractionation processes can be efficiently carried out using this flask.
- Refluxing: Each neck can be utilized for separate reflux setups, allowing researchers to perform multiple reflux reactions concurrently.
- Simultaneous Sampling: The three necks enable the simultaneous sampling of reaction mixtures or the introduction of different materials at various stages of the experiment.
- Temperature Control Experiments: One or more necks can be used for inserting thermometers or temperature probes, providing precise temperature control for each reaction.
- Gas Inlet/Outlet: One or more necks can be used for gas inlets or outlets, making the flask suitable for reactions involving gaseous reactants or by-products.
- Reaction Monitoring: The additional necks allow for the incorporation of monitoring devices, such as sensors or probes, to track reaction progress in multiple vessels.
- Parallel Distillation: Similar to parallel reactions, the flask can be used for parallel distillation, allowing researchers to simultaneously distill multiple samples.
- Complex Experimental Setups: The versatility of a 3-neck parallel flask facilitates the creation of complex experimental setups involving various reaction components, monitoring devices, or additional equipment.
