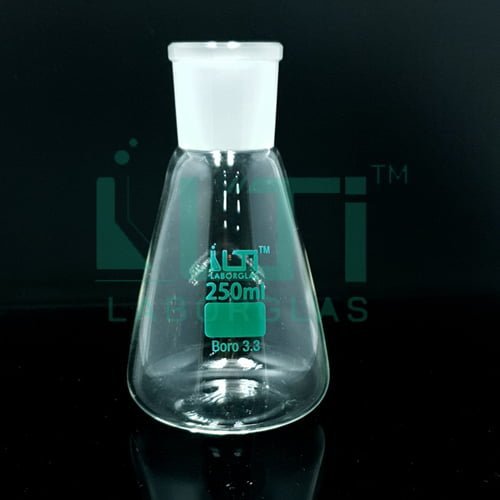

    5400-Flask, Conical, With Joint, ISO

    • Complies with ISO 4797
    • Ideal for mixing liquids
    Categories: , Tags: , ,
    • Complies with ISO 4797
    • Ideal for mixing liquids

    * Non DIN

    PART  No. Capacity (ml) NS Socket Size Overall Height Overall Dia  (mm) PACK Qty.
    5400-25 25 14/23 70 42 10
    5400-25-A 25 19/26 70 42 10
    5400-50 50 14/23 85 51 10
    5400-50-A 50 19/26 85 51 10
    5400-50-B 50 24/29 85 51 10
    5400-50-C 50 29/32 85 51 10
    5400-100 100 14/23 100 64 10
    5400-100-A 100 19/26 100 64 10
    5400-100-B 100 24/29 100 64 10
    5400-100-C 100 29/32 100 64 10
    5400-150* 150 19/26 118 72 10
    5400-150-A* 150 24/29 118 72 10
    5400-150-B* 150 29/32 118 72 10
    5400-200* 200 29/32 131 79 10
    5400-250 250 24/29 140 85 10
    5400-250-A 250 29/32 140 85 10
    5400-300* 300 29/32 156 87 10
    5400-500* 500 19/26 175 105 10
    5400-500-A 500 24/29 175 105 10
    5400-500-B 500 29/32 175 105 10
    5400-1000* 1000 24/29 220 131 10
    5400-1000-A 1000 29/32 220 131 10
    5400-1000-B* 1000 34/35 220 131 10
    5400-2000 2000 29/32 270 166 6
    5400-2000-A* 2000 34/35 270 166 6
    5400-3000* 3000 45/40 310 187 1
    5400-5000* 5000 45/40 365 220 1

    Here are some common uses:

    1. Refuxing Reactions:
      • The flask with a joint is often used in refluxing setups where a condenser or other apparatus can be attached. This is useful for reactions that require continuous refluxing of the reaction mixture.
    2. Distillation:
      • Conical flasks with joints are employed in distillation setups. The joint allows for the attachment of a distillation head, condenser, or other distillation apparatus for separating components based on their boiling points.
    3. Fractional Distillation:
      • For more precise separation of components, the flask with a joint can be used in fractional distillation setups. This is common in purifying liquids or separating components with close boiling points.
    4. Vacuum Filtration:
      • The joint on the conical flask allows for the attachment of a vacuum source and filtration apparatus. This is useful for separating solids from liquids under reduced pressure.
    5. Chemical Synthesis:
      • Conical flasks with joints are utilized in various chemical synthesis processes where additional apparatus, such as condensers or reflux systems, is required.
    6. Heating with Attachments:
      • The joint allows for the attachment of heating mantles or other heating devices for controlled and uniform heating of the flask contents.
    7. Solvent Evaporation:
      • In setups where solvent evaporation is needed, the joint on the flask allows for the attachment of a condenser or other apparatus to collect and condense evaporated solvents.
    8. Pressure Reactions:
      • The joint can be useful in setups where pressure reactions are conducted. It allows for the attachment of pressure-equalizing additions or monitoring devices.
    9. Synthesis and Reaction Monitoring:
      • Conical flasks with joints are used in synthetic chemistry and reaction monitoring where additional monitoring equipment or sensors can be attached to the joint.
    10. Customized Setups:
      • The presence of a joint adds versatility, allowing scientists to create customized experimental setups by attaching various glassware or equipment as needed for specific experiments.
